IoT Cluster Metering Cabinet Solution

Overview

Highlight

Multi-Level Anti-Tamper & Revenue Protection

From smart key access control and door-open detection with automatic relay disconnection, to real-time temperature monitoring and GPS/GIS-based anti-relocation tracking — the cabinet delivers layered physical and digital security. Centralized prepaid management combined with remote vending and local CIU top-up ensures continuous cash flow and eliminates revenue leakage.

Low-Cost, Flexible Networking Architecture

A single WAN uplink from the master cabinet serves all cascaded slave cabinets via WiFi/RF, dramatically reducing wide-area communication costs in multi-cabinet deployments. With uplink options spanning GPRS/3G/4G and Ethernet, plus local PLC/RF/WiFi support, the solution adapts to virtually any site infrastructure — whether wall-mount or pole-mount, 12- or 24-position..

Full Standards Compliance & Future-Proof Design

Certified to STS 2.0, CTS, STS6, MID, DLMS, and IDIS 3, with local approvals across 20+ countries and regions. STS6 compliance specifically addresses the 2024 Token Identifier (TID) rollover problem, protecting utilities from service disruption and ensuring long-term token validity for prepaid operations.

End-to-End Digital Operations from Field to Cloud

The cloud platform integrates MDM, AMI, Vending, Billing, FDM, and HES Cluster modules for complete lifecycle management. On-site CIU reduces service center dependency, HHU minimizes costly field visits, and line loss analytics drive data-informed decisions — collectively accelerating utilities' digital transformation while cutting operational expenditure.

Application Scenarios

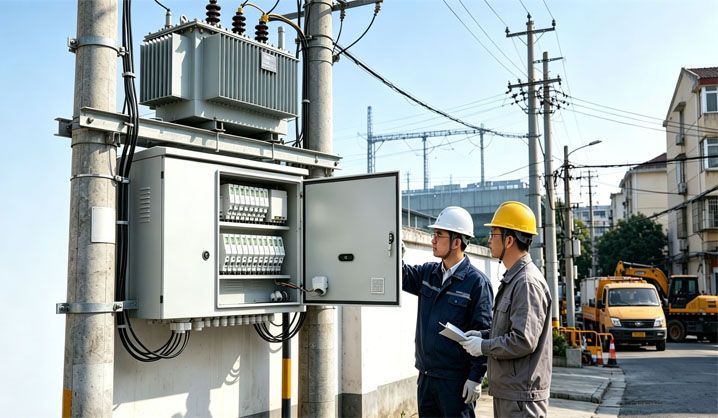

This solution is an IoT cluster metering cabinet designed for scenarios with frequent electricity tampering. Based on the internationally recognized IEC 62055-41 Standard Transfer Specification (STS), it eliminates tampering at low communication costs while safeguarding utility revenue.
