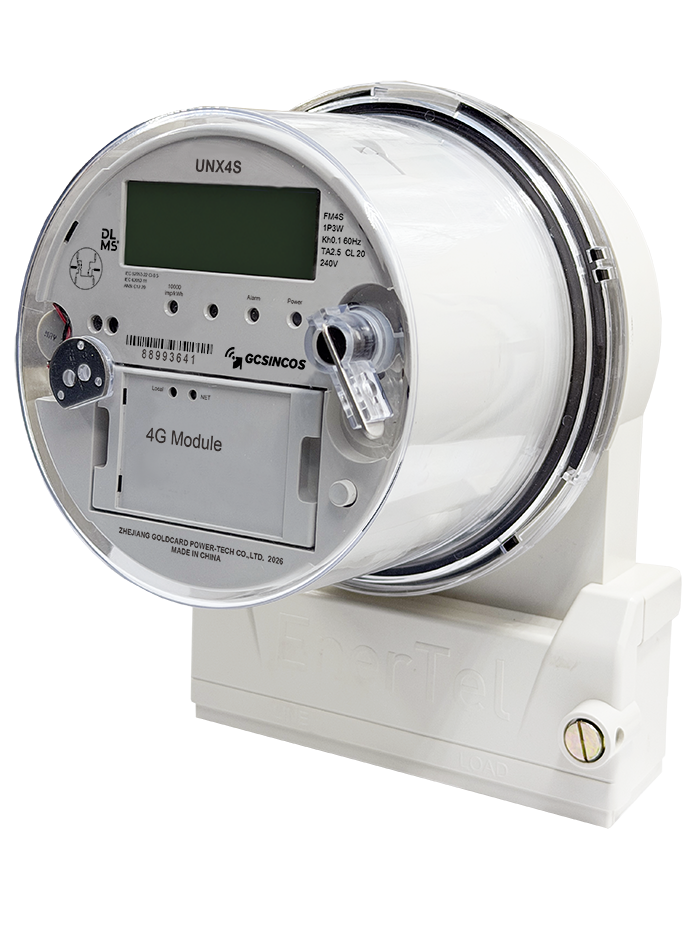

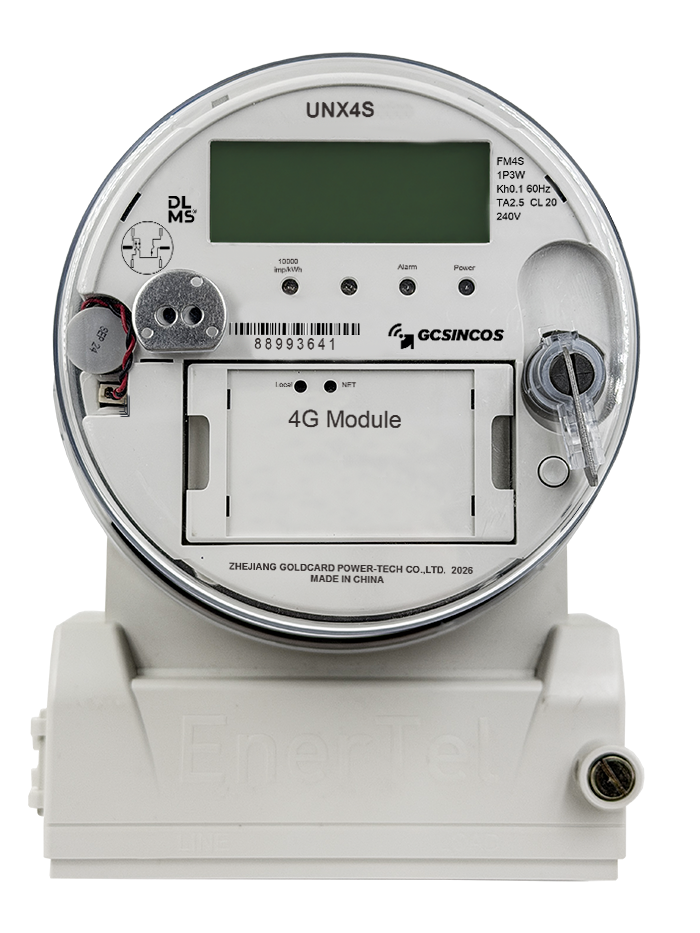

UNX4S ANSI Smart Meter

Overview

The UNX4S is a single phase ANSI transformer-rated smart meter compliant with ANSI FM4S and relevant IEC standards. It features bidirectional measurement and two-way communication, supporting multi-tariff metering, load profile,monthly billing and event log..

Seamlessly integrated with Goldcard Power-tech’s AMI system and third-party management platforms, it is perfectly adapted to ANSI socket-type installation for smart metering in commercial and small industrial application scenarios.

Highlight

Plug-in Communication Module

Replaceable plug-in module support GPRS, 2G, 3G, 4G, 5G, G3-PLC, BPLC, RF, Wi-SUN and hybrid communication modes.

Two way communication

Supports pull and push data to realize remote meter reading, parameters programming, time synchronization, remote disconnection and reconnection, OTA upgrade and alarm report.

High accuracy measurement

Features typical ±0.2% accuracy at standard test points for energy and demand measurement, complying with ANSI C12.20 Class 0.2 accuracy requirement.

Technical Specification

Meter model	UNX4S
Operating Voltage	120/240V
Voltage range	0.7 Un ~ 1.2 Un
Frequency	60Hz ±5%
Degree of protection	IP54,UL50
Insulating class	Class II

Connection type	FM4S (1P3W transformer-rated)
Accuracy Class	CA 0.2 (ANSI C12.20) Class 0.5 for Active (IEC 62053-22) Class 2.0 for Reactive (IEC 62053-23)
Communication interface	Optical port(ANSI type), RS485(Optional) GPRS/4G/G3-PLC/BPLC/RF/Hybrid/Wi-SUN module
Maximum Current	CL20
Temperature Range:	-40 °C ~ +70 °C
Meter lifetime	≥15years
